Type : transceiver

Frequency band : 20 - 52 MHz covered with 2 sub-ranges :

Range Frequency / MHz
1 20 - 36
2 36 - 52

Modulation : FM
Receiver sensitivity : < 1,5 microV
Output power : about 1W
Power supply : 2 pcs 2KNP-20 or 2NKP-20U2 type alkaline battery
                      external 2 x 2,4 V power supply
Construction : semi-conductors, transistors and ICs

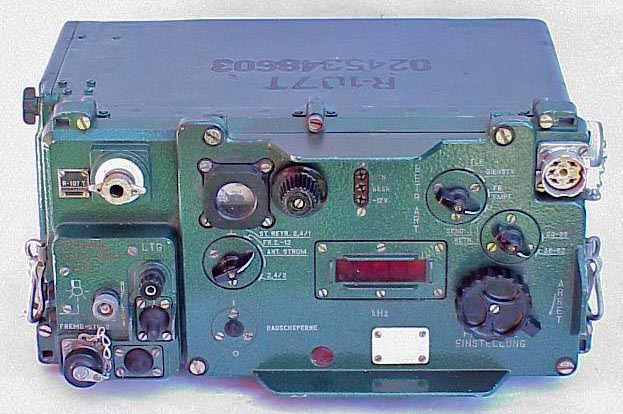

The frequency setting on this type it's made on a digital display, so this version is often called the "digital R-107".

Documents collection (67 MB) : R-107T02 documents
