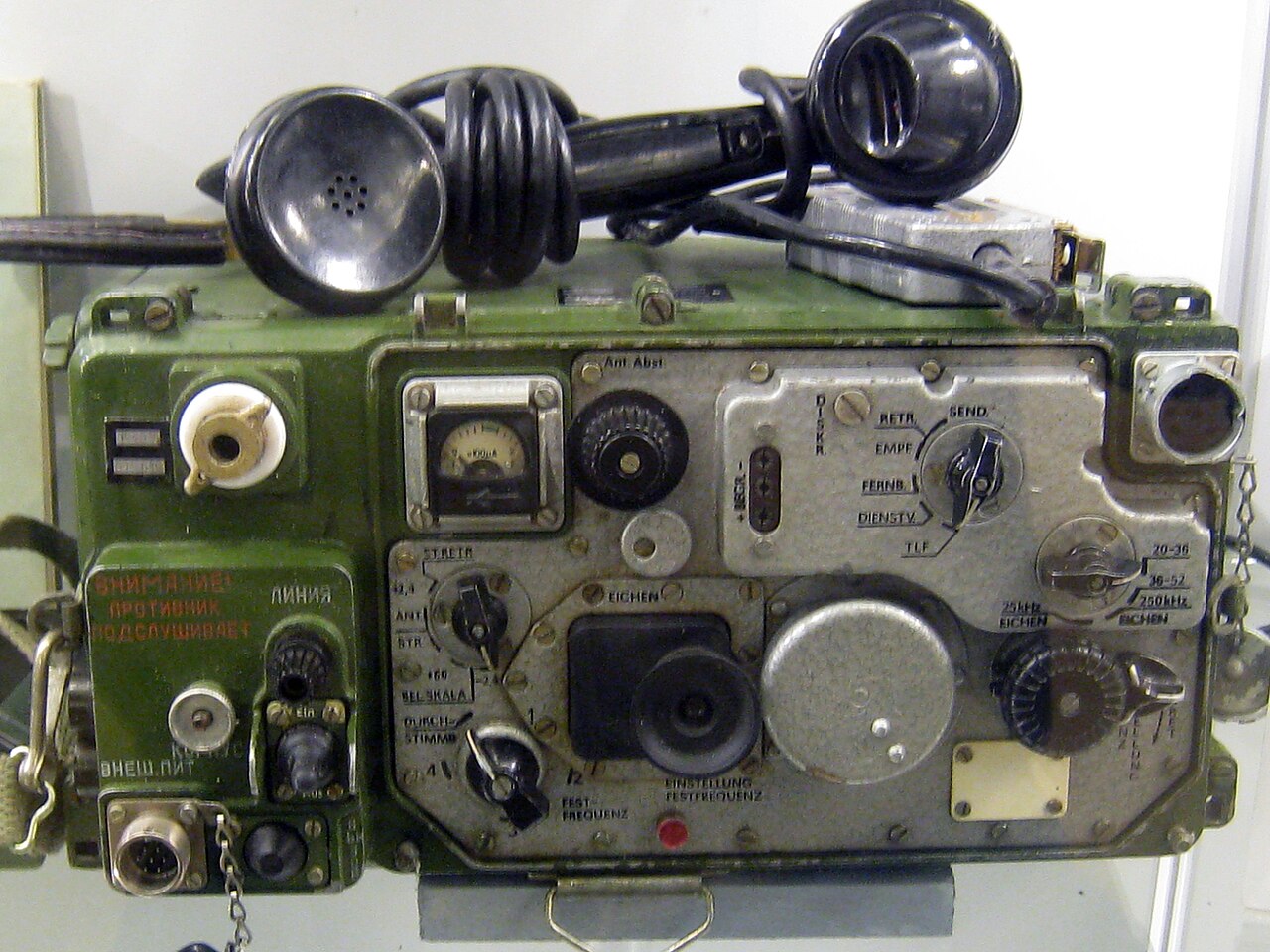

Type : transceiver

Frequency range: 20 - 52 MHz covered with 2 sub-ranges :

Range Frequency / MHz
1 20 - 36
2 36 - 52



Modulation : FM

Receiver sensitivity : < 1,5 microV

Output power : between 1-2W

Power source : 2 pcs 2KNP-20 type alkaline battery

                      external 2 x 2,4 V power supply

Construction : hybrid, tubes, 18 pcs, types : 1П24Б / 1Ж29Б / 1Ж24Б / 1Ж37Б

                                  transistor, 17 pcs, types : П201А3 / П416А / П217Б / МП13Б (П13Б) / МП15Б (П15) / П210A



Documents collection (42 MB) : R-107 documents

This type is maintained by the website. If required, we can provide additional information and pictures about this type.
