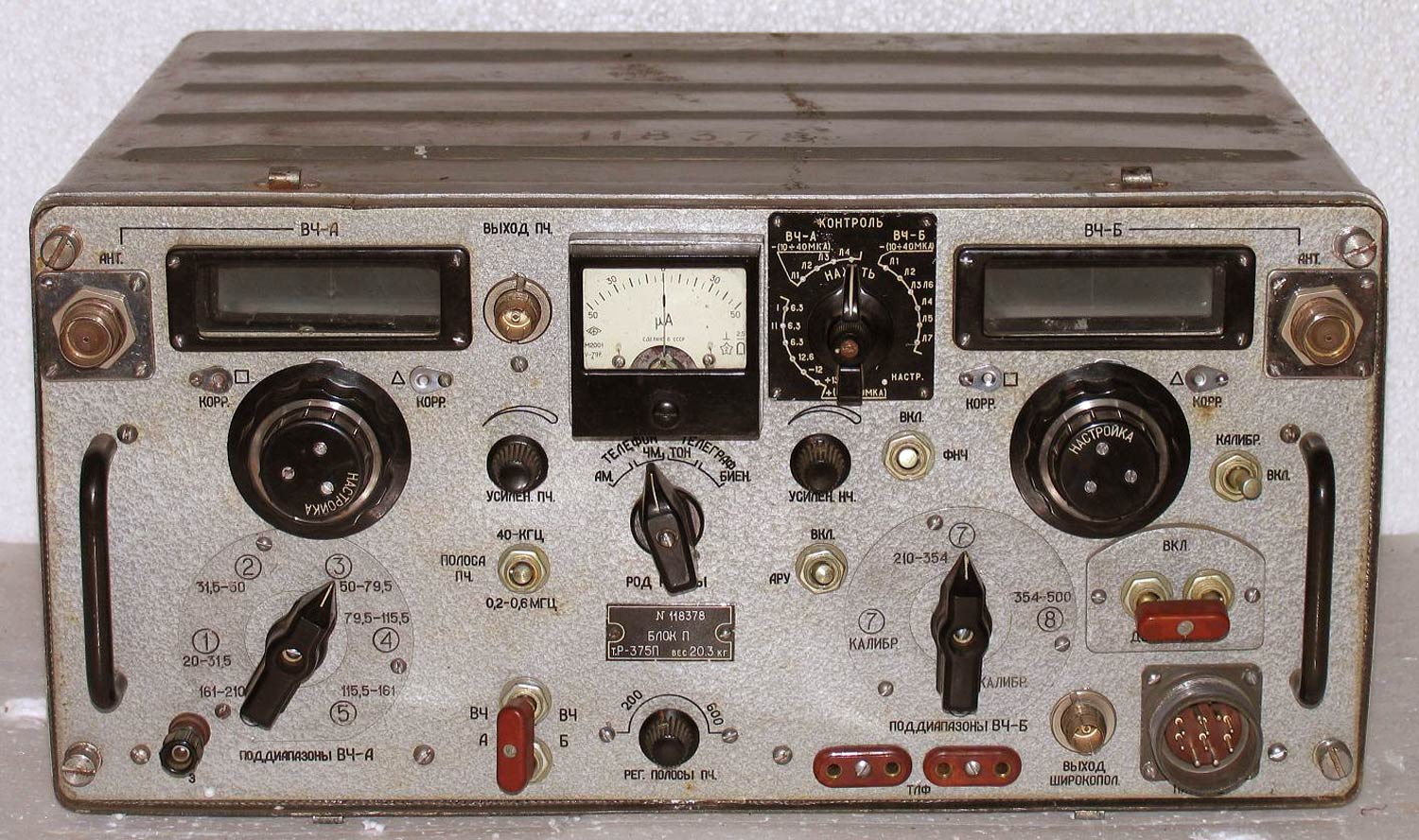

Type : receiver

Frequency band : 20 - 500 MHz covered by 8 sub-ranges :

Range Frequency / MHz
1 20 - 31,5
 2 31,5 - 50
 3 50 - 79,5
 4 79,5 - 115,5
 5 115,5 - 161
 6 161 - 210
 7 210 - 354
 8 354 - 500

Modulation : AM, FM, CW, SSB

Sensitivity : unregulated bandwidth (40 kHz) < 1,5 mikroV

Power supply : own power supply  110V, 127V, 220V 50Hz or 115V 400 Hz
                                                    12,5V battery

Construction : tubes, 23 pieces, types : 6С17К-В / 6С4П-Е / 6С3П-Е / 12С3С / 6Ж1П-ЕВ / 6Н3П / 6С19П-В / СГ15П-2

Documents coolection (11 MB) : R-375 documents
