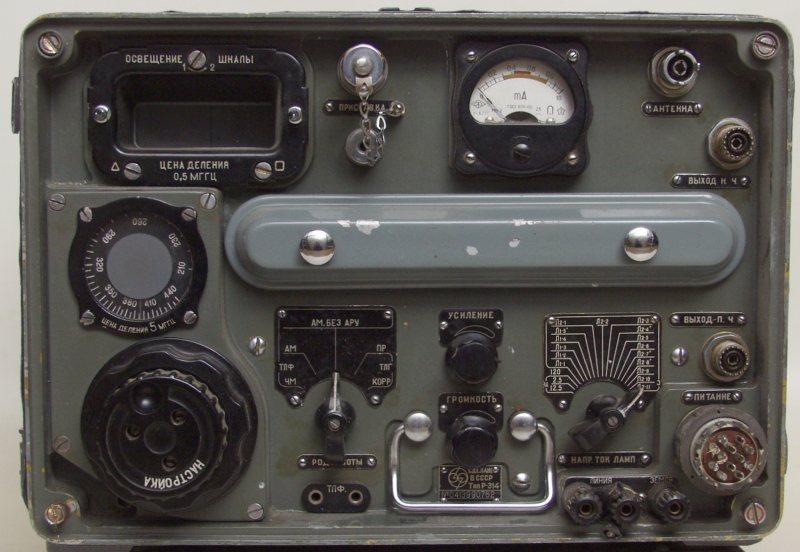

Type : receiver
Frequency band : 210 - 440 MHz
Modulation : CW, AM, FM
Sensitivity : CW, AM < 12 mikroV
                          FM <   6 mikroV
Power source : 2NКN-24 battery
                       110V, 127V, 190V, 220V (50 Hz) power supply
                       110V DC, with OP-120F power supply
Construction : tubes, 16 pieces, types : 6С2П / 12С3С / 6Ж1П / 2Ж27Л
Documents collection (1,8 MB) : R-314 documents
More photos : More R-314 radio photos
