Type : receiver

Frequency band: 1 - 10 MHz covered by 6 sub-ranges

Modulation : AM, CW
Sensitivity : AM   range 1 - 5 <= 4,5 microV
                                        6 <= 6    microV
                  CW  range 1 - 5 <= 1,5 microV
                                        6 <= 2    microV

Power supply : own power supply 127V, 220V / 50 Hz

Construction : tubes, 15 pcs, type : 2Ж27Л

Documents collection (503 kB) : R-251 schematic

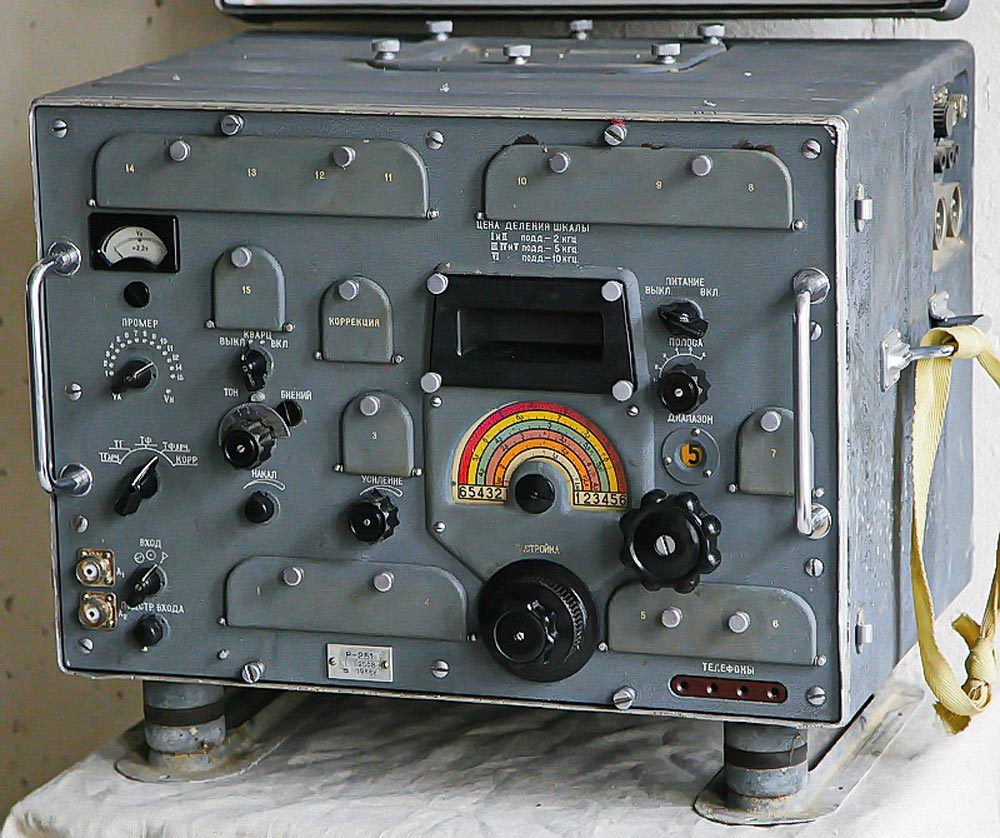

The receiver types R-251, R-252 and R-310 basically they are one family, very similar to each other even in their construction, the most significant difference is their working frequency range.

R-251 : 1.0 - 10.0 MHz
R-252 : 0.075 - 2.0 MHz
R-310 : 1.5 - 25 MHz
