Type : transceiver

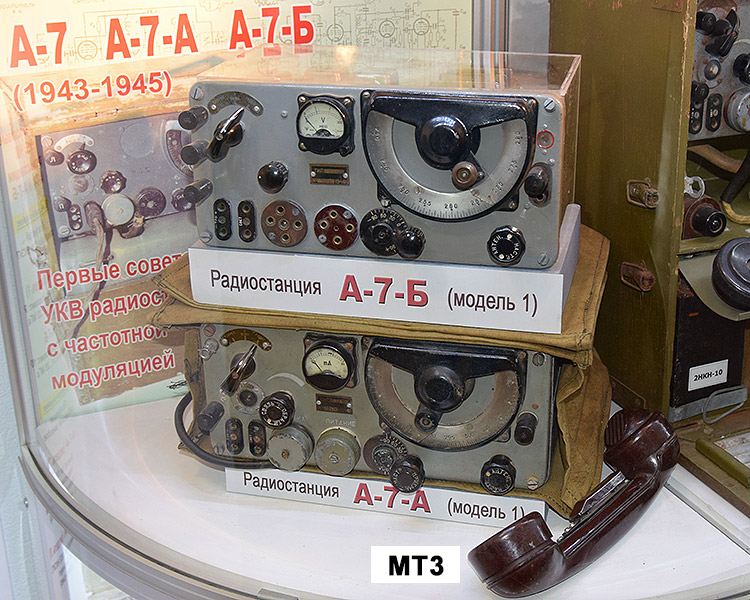

Second WW russian transceiver family that has 3 types : A7, A7A and A7B
Each type has slightly different models.

Modulation : FM
Receiver sensitivity : < 1,5 mikroV
Output power : 1W
Construction : tubes


A7     Number of models : 3
          Tubes :  2К2М (9 pcs), СО-257(2 pcs)
          Frequency : 27 - 32 MHz


A7A   Number of models : 7
          Tubes :  1N5GT (8 pcs), 1299А (1 pcs)  model 1, 2, 3, 3a, 5a
                      2К2М (8 pcs), СО-257 (1 pcs)  model 4, 5
          Frequency : 27 - 32 MHz


A7B   Number of models : 4
          Tubes :  2К2М (8 pcs), СО-257(2 pcs)
          Frequency : 24 - 28 MHz


Power supply : 2 pcs BAS-80 dry cell battery in total 160V
                      2 pcs 2NKN-10 rechargeable battery

Documents collection (34 MB) : A7 documents

More photos : More A7 radio photos
